Can You Use 8 Pin 4 Pin Motherboard – Check Compatibility!

Motherboards are the backbone of a computer system, connecting various components and ensuring smooth operation.

Yes, you can use an 8-pin CPU motherboard with a 4-pin connector. The 8 pins can split into two 4-pin connectors, ensuring compatibility and proper power delivery for your CPU.

In this article, we’ll delve into the compatibility of 8-pin and 4-pin connectors and explore whether interchangeable’s feasible.

Understanding Motherboard Connectors

1. What are motherboard connectors?

Motherboard connectors are interfaces that link the power supply unit (PSU) to the motherboard, delivering power to essential components such as the CPU and peripherals. They come in various types, including 8-pin and 4-pin connectors.

2. Types of motherboard connectors

Motherboard connectors come in various types, including 8-pin and 4-pin connectors. These connectors link the power supply unit (PSU) to the motherboard, delivering power to essential components such as the CPU and peripherals.

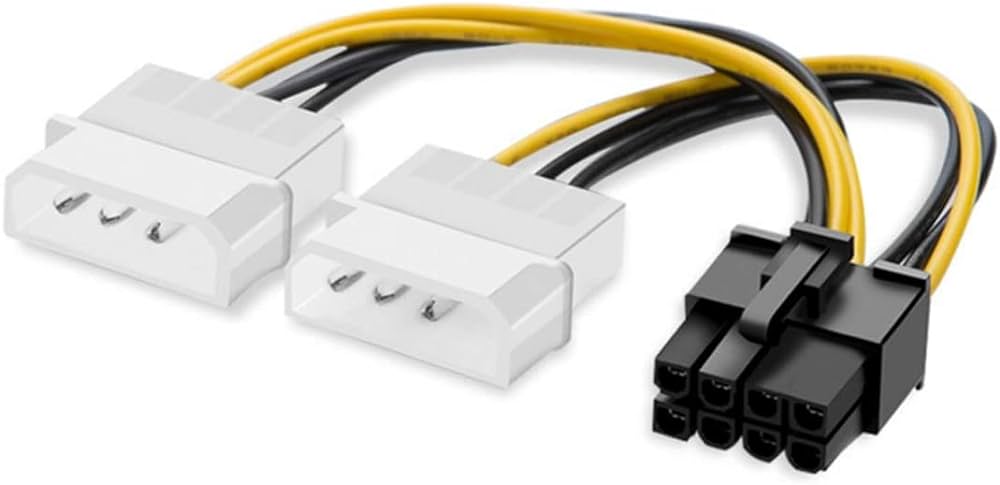

Difference Between 8-Pin and 4-Pin Connectors

1. 8-Pin Connector

An 8-pin connector is a type of plug that connects the power supply unit (PSU) to the motherboard. It delivers extra power to high-performance CPUs, helping them run smoothly, especially when handling demanding tasks like gaming or video editing.

2. 4-Pin Connector

A 4-pin connector is a type of plug that links the power supply unit (PSU) to the motherboard. It provides basic power to the CPU and other components, suitable for standard computing tasks and older systems.

Read: Msi Motherboard Error Codes – Fix The Errors – 2024!

Can I Plug An 8 Pin Into My 4 Pin Cpu Mobo

Plugging an 8-pin connector into a 4-pin CPU motherboard is not recommended. It may not fit properly and could damage the motherboard or other components due to incompatible power delivery.

Mobo Has 4-Pin 12v Connector, But Psu Has 8-Pin. What Can I Do?

If your motherboard has a 4-pin 12V connector, you can use an adapter, but your PSU has an 8-pin connector. However, ensure compatibility and consult your motherboard and PSU manuals for guidance.

Using 4pin CPU connector Into Mobo 8 Pin

Using a 4-pin CPU connector into a motherboard with an 8-pin socket is not recommended. It may not provide sufficient power and could lead to instability or damage to the components.

Motherboard Has 8-Pin CPU Connector But Psu Has Only 4-Pin

If your motherboard has an 8-pin CPU connector but your PSU only has a 4-pin connector, you can use the 4-pin connector. However, ensure it’s securely connected and consider upgrading your PSU for better compatibility.

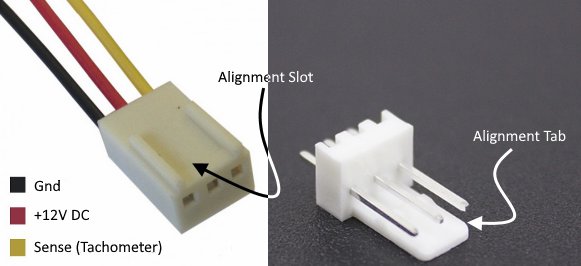

Is It Okay To Put An 8-Pin CPU Connector In A 4-Pin Slot?

No, putting an 8-pin CPU connector into a 4-pin slot is not advisable. Doing so can cause compatibility issues and damage the motherboard or other components due to improper power delivery.

Psu:How To Connect A Psu To A 4-Pin Cpu Port

To connect a PSU to a 4-pin CPU port:

1. Align the connectors on the cable with the port on the motherboard.
2. Insert the connector gently but firmly until it clicks into place.
3. Ensure a secure connection for stable power delivery.

Do I Need Both The 8 Pin And 4 Pin CPU Power Plug For My Msi B450 Pro Carbon?

The MSI B450 Pro Carbon motherboard typically requires an 8-pin or a 4-pin CPU power plug, not both. However, using both connectors might provide additional power for overclocking or extreme usage scenarios.

8 pin and 4 pin CPU Power connectors on MSI MPG2390, blew out my PSU (CX750)

The simultaneous use of the 8-pin and 4-pin CPU power connectors on my MSI MPG2390 motherboard led to an overload, failing my PSU (CX750).

Read: Asrock Motherboard Wifi Not Working – Resolve The Issues!

Motherboard Has 8pin+4pin Cpu Connectors But Psu Has Only 4+4pin?

If your motherboard has an 8-pin and a 4-pin CPU connector, but your PSU only has a 4+4-pin connector, you can use the 4+4-pin connector.

This connector can be split into two parts, providing sufficient power for both connectors on the motherboard.

4-Pin To 8-Pin Motherboard Power Plug Adapter

A 4-pin to 8-pin motherboard power plug adapter is a converter that allows you to connect a 4-pin power connector from your PSU to an 8-pin socket on your motherboard. It ensures compatibility and proper power delivery.

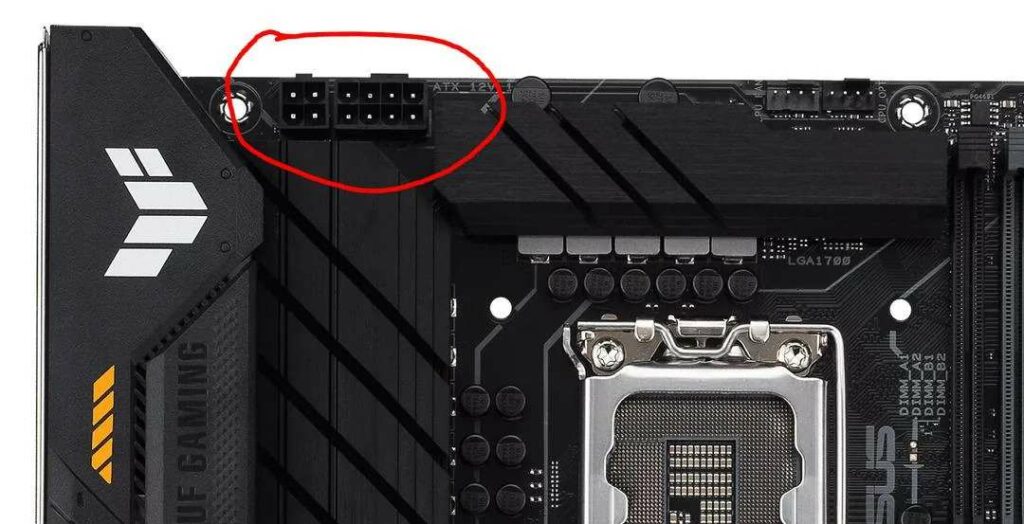

Do You Need Both 8 Pin And 4 Pin CPU Power

Whether you need an 8-pin or a 4-pin CPU power connector depends on your motherboard and CPU. Some motherboards require one or both for optimal performance.

How To Split 8 Pin Cpu Connector

To split an 8-pin CPU connector, you can use a cable splitter specifically designed for this purpose. Simply plug the single 8-pin connector into the splitter and connect the two resulting 4-pin connectors to your motherboard.

How Do You Split An 8 Pin Into A 4 Pin?

You can use a splitter cable designed for this purpose to split an 8-pin CPU power connector into a 4-pin one.

This cable will have one end with an 8-pin connector and two ends with 4-pin connectors, allowing you to connect them accordingly.

Read: Do Motherboards Come With Thermal Paste – How To Apply!

Is It Necessary To Have Both The 8-Pin And 4-Pin

Whether it’s necessary to have the 8-pin and 4-pin CPU power connectors depends on your motherboard and CPU.

Some motherboards require one or both for optimal power delivery and stability, especially high-performance systems.

Can I Plug 8 Pin To 4 Pin Motherboard?

It’s not advisable to plug an 8-pin connector into a 4-pin motherboard. Doing so may cause compatibility issues and damage the motherboard or other components due to improper power delivery.

Should I Connect Both 8 Pin And 4 Pin Cpu Power?

Whether you should connect the 8-pin and 4-pin CPU power connectors depends on your motherboard and CPU. Consult your motherboard manual to determine the optimal performance and stability configuration.

Read: Do You Need To Reinstall Windows After Replacing Motherboard

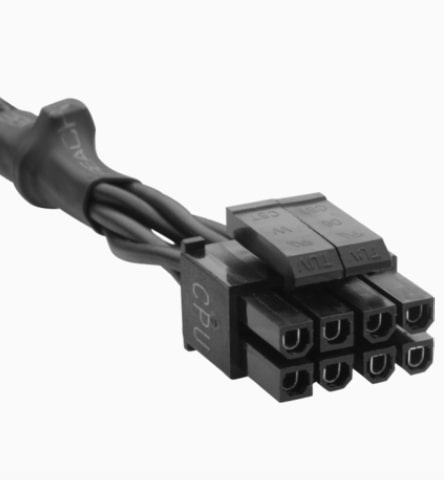

Do I Need All 8 Pins For CPU?

Whether you need all 8 pins for the CPU depends on your motherboard and CPU requirements. Check your motherboard manual for the recommended power configuration for optimal performance.

Is Atx 4 Pin Required?

Whether the ATX 4-pin connector is required depends on your motherboard and CPU setup. Some motherboards may need it for supplemental power delivery, especially high-performance CPUs. Check your motherboard manual for specific requirements.

What Is A 4-Pin Atx Connector For?

The 4-pin ATX connector is primarily used to supply additional power to the CPU on the motherboard. It ensures stable power delivery, especially during demanding tasks, to maintain smooth system operation.

Read: What Is T Sensor On Motherboard – Must You Need To Know!

What Does A 4-Pin Atx Connector Do?

A 4-pin ATX connector typically provides supplemental power to the CPU on the motherboard. It ensures stable power delivery to the CPU for proper functioning, especially during heavy computing tasks.

Do I Need To Connect Atx 12v 4-Pin?

Whether you need to connect the ATX 12V 4-pin connector depends on your motherboard and CPU requirements. Check your motherboard manual for the recommended power configuration to ensure optimal performance.

Read: Can A Motherboard Bottleneck – Optimize Your System Now!

Can A 4 Pin Atx Connector Work On The 8 Pin Atx Motherboard?

Using a 4-pin ATX connector on an 8-pin ATX motherboard is possible but not recommended. It may not provide sufficient power and could lead to instability or damage to the components.

Using an 8 pin for the 4 pin CPU power.

Using an 8-pin CPU power connector on a motherboard designed for a 4-pin connector is safe and provides more stable power, especially for high-performance tasks or overclocking. Ensure the connectors are compatible.

Need 8 pin power to CPU? I’ve just got 4

If your motherboard needs an 8-pin power connector but you only have a 4-pin, it may still work for low-power CPUs. However, it might need to provide more power for high-performance or overclocked CPUs.

8 pin to 4 pin CPU Power Adapter

An 8-pin to 4-pin CPU power adapter can connect an 8-pin PSU to a 4-pin motherboard. However, to avoid instability or insufficient power delivery, ensure it’s compatible with your system’s power requirements.

8 pin motherboard connector

An 8-pin motherboard connector supplies extra power, which is crucial for high-performance or overclocked CPUs. It ensures stable power delivery during demanding tasks, enhancing system stability and performance.

Motherboard only has 4 pin CPU

If your motherboard only has a 4-pin CPU power connector, it’s suitable for most mid-range CPUs. However, due to insufficient power, high-performance or overclocked CPUs might experience instability. Consider upgrading to an 8-pin connector for better stability.

ATX CPU power connector 4 pin to 8 pin

A 4-pin to 8-pin adapter connects a 4-pin power supply to an 8-pin motherboard. This can work for low-power CPUs but might need more power for high-performance or overclocked CPUs.

4 pin to 8 pin adapter GPU

A 4-pin to 8-pin adapter connects an older PSU to a newer GPU. Ensure it meets the GPU’s power needs to prevent instability or insufficient power, especially during heavy use.

8+4 pin CPU power

The 8+4 pin CPU power configuration provides additional power for high-performance or overclocked CPUs. This setup enhances stability and ensures sufficient power delivery during intensive tasks.

8-Pin Power Port & 4+4 Pin PSU issues

A PSU with 4+4 pin connectors in an 8-pin port ensures proper power delivery. Secure both connectors to avoid power issues or instability, especially for high-performance CPUs.

Do I need to use 4 pin with 8 pin motherboard power connector?

A 4-pin connector in an 8-pin socket works for low-power CPUs but might be needed more than for high-performance or overclocked CPUs. An 8-pin connector is recommended for stable power delivery.

Can I use only 4 pins to power an 8 pin motherboard?

A 4-pin connector can power an 8-pin motherboard for lower-power CPUs. However, it might not provide enough power for high-performance systems, causing instability or power issues.

Connecting an 8 pin connector to my 4 pin CPU?

An 8-pin connector can fit a 4-pin CPU power socket but may provide more power than needed. Ensure compatibility to avoid potential damage or instability in the system.

PC building: Do you have to plug in the 4-pin CPU connector?

Yes, plug in the 4-pin CPU connector to provide the necessary power. For high-performance CPUs, use the entire 8-pin connector to ensure stability and an adequate power supply.

Can you use only 4 pins instead of 8 for powering the CPU?

Yes, you can use a 4-pin connector instead of an 8-pin connector to power the CPU, but this may not provide enough power for high-performance or overclocked CPUs. This setup is usually fine for lower-power CPUs.

Motherboard has 8pin+4pin CPU connectors but PSU has only 4+4pin?

If your motherboard has 8-pin and 4-pin connectors but your PSU only has 4+4-pin, you can connect the 4+4-pin to the 8-pin slot. This should provide enough power for most CPUs, but check your CPU’s power needs.

Power connector to the motherboard new build question (need help)

Ensure your PSU connectors match the motherboard’s power requirements for a new build. If your motherboard has an 8-pin CPU power connector, use an 8-pin from the PSU. Adapters can be used, but they may not provide optimal power.

Do I need to connect both the 12V 8 pin and 4 pin power connectors?

Connecting both the 12V 8-pin and 4-pin power connectors is recommended for high-performance or overclocked CPUs. This ensures adequate power delivery and system stability. For lower-power CPUs, the 8-pin should suffice.

CONNECT A PSU TO A 4-PIN CPU PORT

To connect a PSU to a 4-pin CPU port, use one of the 4-pin connectors from the PSU. This setup is suitable for most mid-range CPUs but may need more for high-performance or overclocked CPUs.

My PSU has 4+4 CPU plugs and my motherboard has 1 CPU connector (AMD). Is it safe to connect one of the set of the 4 + 4 plugs?

Yes, it’s safe to connect one of the 4+4 CPU plugs to your motherboard’s single CPU connector. This will provide the necessary power for most CPUs, ensuring compatibility and system stability.

FAQs

1. I’m looking to buy a PSU that has an 8 pin and 4+4 pin connector for the CPU. Will it work with my motherboard if it has only a CPU 4 pin connector?

Yes, a PSU with both an 8-pin and 4+4-pin CPU connector will work with your motherboard, even if it only has a CPU 4-pin connector. The 4+4-pin connector can split to fit the 4-pin slot.

2. 8 pin power connector, 4 pins on motherboard? Help!

If you have an 8-pin power connector but your motherboard only has a 4-pin slot, you can use just half of the 8-pin connector. Simply split it into two 4-pin sections.

3. If my motherboard has 8 pins for CPU and my old PSU has only 4, will it work? Or do I need a PSU with 8 pins?

If your motherboard has an 8-pin CPU connector but your old PSU has only 4 pins, it won’t work directly. You’ll need a PSU with an 8-pin CPU connector for compatibility.

4. Will a 4 pin PSU work on a motherboard that has a 8 pin connection or will I need to buy a new PSU?

A 4-pin PSU won’t directly work on a motherboard with an 8-pin connection. You’ll need a new PSU with an 8-pin connector or an adapter to ensure proper power delivery.

5. My PSU has a 4+4 pin for the GPU but I have no pins for the CPU which needs 4. My GPU RTX 2070 needs all 8 pins. What should I do?

If your PSU has a 4+4-pin connector for the GPU but none for the CPU, you can use one half of the 4+4-pin connector for the CPU. Then, use the other half for your GPU to ensure both components receive sufficient power.

6. What is the difference between the 4 and 8 pin connector to the motherboard?

The 4-pin connector provides around 155 watts, suitable for most mid-range CPUs. The 8-pin connector offers up to 235 watts, ensuring stable power for high-performance or overclocked CPUs and reducing the risk of power issues during heavy use.

7. Do I need to use all CPU power connectors?

To ensure stable power delivery, it is recommended that high-performance or overclocked CPUs use all CPU power connectors. For standard CPUs, however, the primary 8-pin connector is often sufficient.

8. Can you go from 4 pin to 7 pin?

No, there are no standard 7-pin CPU power connectors. It would help to use connectors matching your motherboard’s requirements, typically 4-pin, 8-pin, or a combination.

9. What does ATX 4 pin do?

The ATX 4-pin connector supplies power to the CPU. It is essential for the CPU to function properly, especially in mid-range systems.

10. What is the extra 4 pin connector on a motherboard?

The extra 4-pin connector on a motherboard provides additional power for high-performance or overclocked CPUs. It complements the primary 8-pin connector and ensures stable power delivery during demanding tasks.

Conclusion

In conclusion, the compatibility between 8-pin and 4-pin CPU connectors depends on your motherboard and PSU setup. It’s crucial to ensure proper power delivery for stable system operation and to avoid potential damage.
