What is PCIe Bifurcation?
PCIe bifurcation is a technology that splits a single PCIe lane into multiple lanes, allowing a single slot to support various devices or expansion cards simultaneously for enhanced system connectivity.
Understanding PCIe Bifurcation

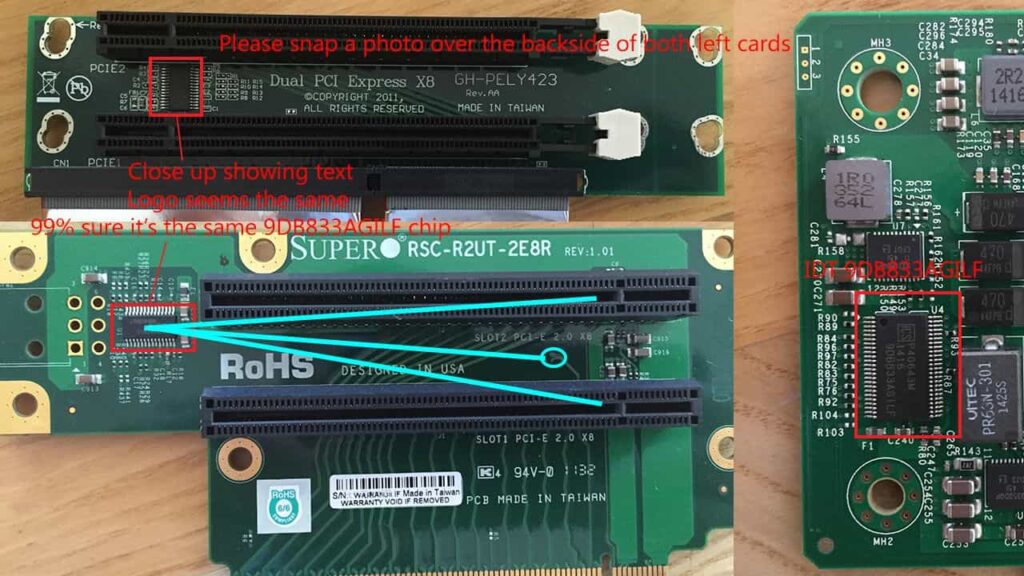

![Understanding PCIe Bifurcation](https://i0.wp.com/techyplays.com/wp-content/uploads/2024/04/Understanding-PCIe-Bifurcation.jpg?resize=1024%2C576&ssl=1)
Understanding PCIe bifurcation involves splitting a single PCIe lane into multiple lanes, enabling more devices or expansion cards to be connected to a single PCIe slot simultaneously.
Benefits Of Pcie Bifurcation
1. Enhanced Flexibility
PCIe bifurcation offers increased flexibility by allowing multiple devices to be connected to a single PCIe slot, accommodating diverse system configurations and expanding connectivity options.
2. Cost Efficiency
By enabling multiple devices on a single PCIe slot, PCIe bifurcation reduces the need for additional expansion cards or slots, resulting in cost savings for system builders.
3. Improved Performance
PCIe bifurcation enhances system performance by distributing bandwidth more efficiently among multiple devices, ensuring each device can operate at its maximum potential without bottlenecking.
4. Space Optimization
PCIe bifurcation helps optimize space within a system by consolidating multiple devices onto a single PCIe slot, reducing the physical footprint of expansion cards and maximizing available space for other components.
5. Future-Proofing
Incorporating PCIe bifurcation into a system design ensures compatibility with future expansion needs, allowing for easy scalability and upgrades without requiring significant hardware changes.
Read: Do I Need To Reinstall Windows With New Motherboard
Top PCIe Bifurcation Motherboards

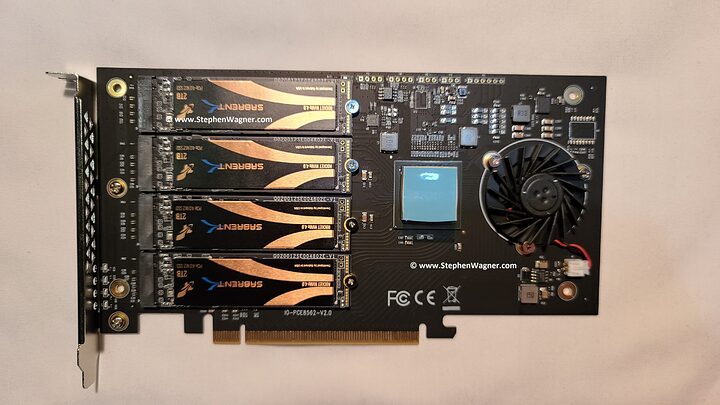

![Top PCIe Bifurcation Motherboards](https://i0.wp.com/techyplays.com/wp-content/uploads/2024/04/Top-PCIe-Bifurcation-Motherboards.jpeg?resize=720%2C405&ssl=1)
1. ASUS ROG Zenith II Extreme Alpha
- This motherboard helps split PCIe 4.0 lanes to use with different devices.
- It’s big and robust, perfect for powerful computers.
- It has many slots to connect big cards and fast storage drives.
- It also boosts your computer’s performance and has many ways to connect things like monitors and other devices.
2. Gigabyte X570 Aorus Xtreme
- This motherboard is made with the AMD X570 chipset, which helps it work with PCIe 4.0 devices.
- It looks nice and has good-quality parts to keep it cool.
- You can use some of its slots to connect more things without slowing down your computer.
- It also has colourful lights you can customize and many settings you can change in the BIOS to make your computer work just how you want it to.
3. ASRock X299 Taichi CLX
- This motherboard works with the Intel X299 chipset and lets you split PCIe 3.0 lanes with different devices.
- It looks fantastic, has many great features, and works with Intel Core-X series processors.
- It has many big slots to connect cards, which is great for gamers, creators, and professionals.
- It also has two LAN ports, Thunderbolt 3 connections, and muscular power delivery to make your computer work better and more reliably.
Technical Aspects Of Pcie Bifurcation
Technical aspects of PCIe bifurcation involve understanding how the technology splits a single PCIe lane into multiple lanes, the configuration of PCIe slots, compatibility with different devices, BIOS settings, and potential performance impacts.
Benefits Of Pcie Bifurcation Beyond Expansion
1. Resource Allocation
PCIe bifurcation facilitates efficient allocation of resources by distributing bandwidth and connectivity among multiple devices, optimizing system performance and utilization of hardware resources.
2. Scalability
PCIe bifurcation supports scalability by allowing additional devices to be connected to existing PCIe slots, enabling easy expansion and upgrading of system capabilities as needed.
3. Redundancy and Fault Tolerance
PCIe bifurcation enhances system reliability by enabling the creation of redundant configurations, such as RAID arrays, for data storage or networking, ensuring fault tolerance and data integrity.
4. Virtualization and Multi-Tenancy
PCIe bifurcation enables virtualization and multi-tenancy scenarios by allowing multiple virtual machines or users to access dedicated PCIe resources, enhancing flexibility and efficiency in virtualized environments.
Read: Do Motherboards Come With Thermal Paste – How To Apply!
Considerations for Choosing a PCIe Bifurcation Motherboard

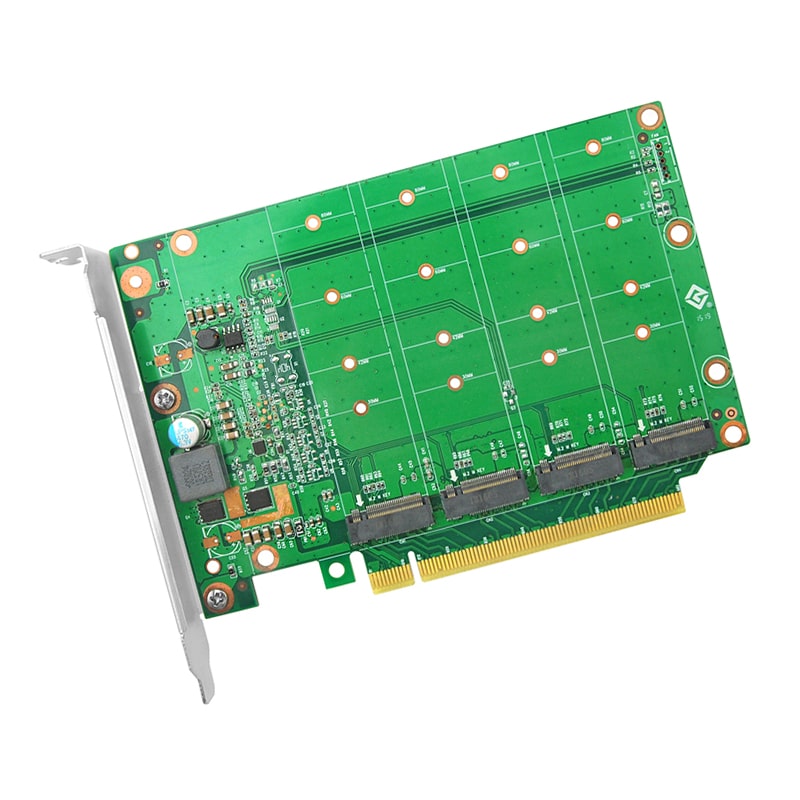

![Considerations for Choosing a PCIe Bifurcation Motherboard](https://i0.wp.com/techyplays.com/wp-content/uploads/2024/04/Considerations-for-Choosing-a-PCIe-Bifurcation-Motherboard.jpg?resize=800%2C800&ssl=1)
1. Chipset Compatibility
Chipset compatibility is crucial when selecting a motherboard for your computer setup. It ensures that the motherboard’s chipset can support the features and components you intend to use.
It’s like making sure that puzzle pieces fit together perfectly. With chipset compatibility, you can avoid compatibility issues and ensure optimal performance for your system.
2. Bifurcation Support
Bifurcation support refers to the motherboard’s ability to split PCIe lanes into multiple lanes. It’s like having a transformer that can convert electricity to different voltages.
With bifurcation support, the motherboard can divide PCIe lanes to accommodate various expansion cards, enhancing flexibility and performance.
3. Expansion Slot Configuration
Expansion slot configuration determines the layout and number of PCIe slots on the motherboard.
It’s like arranging seats in a theatre to accommodate different audience sizes. With the proper expansion slot configuration, users can easily install and connect various expansion cards, such as graphics cards, network adapters, and storage devices.
4. Manufacturer Reputation and Support
Manufacturer reputation and support are essential factors in choosing a PCIe bifurcation motherboard.
It’s like picking a reliable brand for your smartphone that offers excellent customer service. With a reputable manufacturer, users can expect quality products, timely firmware updates, and reliable technical support, ensuring a smooth user experience.
5. Future Expansion and Upgradability
Future expansion and upgradability involve considering the motherboard’s potential for accommodating future hardware upgrades.
It’s like buying a house with room for expansion as your family grows. With PCIe bifurcation motherboards, users can plan for future upgrades by ensuring compatibility with upcoming technologies and expansion cards, maximizing the longevity of their systems.
Read: Is Asrock A Good Motherboard – See ASRock’s Board Benefits!
Limitations and Challenges
Limitations and challenges of PCIe bifurcation include potential compatibility issues with certain hardware configurations, limited support on older motherboards, and complexities in configuring BIOS settings for optimal performance.
Recommend A Motherboard With Bifurcation – Hardware

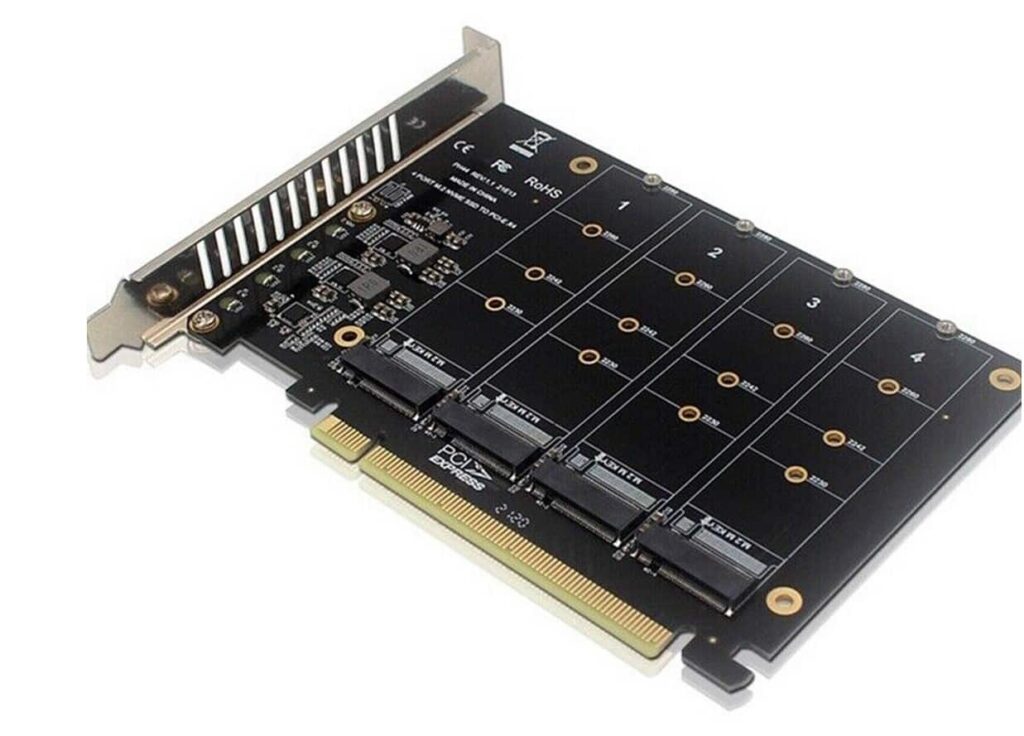

![Recommend A Motherboard With Bifurcation - Hardware](https://i0.wp.com/techyplays.com/wp-content/uploads/2024/04/Recommend-A-Motherboard-With-Bifurcation-Hardware.jpg?resize=1024%2C736&ssl=1)
I recommend the ASUS ROG Zenith II Extreme Alpha motherboard for bifurcation support. It offers robust hardware features and flexible PCIe configurations suitable for various expansion needs.
Motherboards that support PCIe 3 bifurcation – two x16 slots, each as x8 + x8?
Motherboards that support PCIe 3 bifurcation with two x16 slots configured as x8 + x8 include options like ASUS ROG Maximus XII Extreme and Gigabyte Z490 AORUS XTREME WATERFORCE.
AMD (and even Intel) motherboards that support bifurcation (8x/8x split) through bios option
AMD and Intel motherboards that support bifurcation with an 8x/8x split through BIOS options include models like the ASRock X570 Taichi, ASUS ROG Strix X570-E Gaming, MSI MEG X570 ACE, and Gigabyte X570 AORUS MASTER.
Suggestion motherboard for a server with PCIe Bifurcation
For a server requiring PCIe bifurcation support, consider motherboards like the ASUS Pro WS WRX80E-SAGE SE WIFI or the ASRock Rack EPYCD8-2T, offering robust features and compatibility for server-grade applications.
Does anyone know of good motherboards that support PCIe bifurcation?
Yes, several good motherboards support PCIe bifurcation. Some popular options include the ASUS ROG Zenith II Extreme Alpha, ASRock X570 Taichi, Gigabyte Z490 AORUS XTREME WATERFORCE, and MSI MEG X570 GODLIKE.
X570 Motherboards with Bifucration support
X570 motherboards with bifurcation support include models like the ASRock X570 Taichi, ASUS ROG Crosshair VIII Formula, Gigabyte X570 AORUS MASTER, and MSI MPG X570 GAMING PRO CARBON WIFI.
Any AM5 Motherboards that allow PCIe 4x4x4x4 bifurcation from an x16 slot?
Currently, no specific AM5 motherboards are available in the market. However, once AM5 motherboards are released, some models will likely support PCIe 4x4x4x4 bifurcation from an x16 slot, similar to previous generation motherboards.
Need help understanding Asrock PCIE bifurcation
Understanding ASRock PCIe bifurcation involves knowing how ASRock motherboards can split PCIe lanes to support multiple devices. Typically, this feature is configured in the BIOS settings, allowing users to allocate bandwidth according to their requirements.
Bifurcation Issues
Bifurcation issues can arise when splitting PCIe lanes on motherboards, leading to compatibility issues, decreased performance, or system instability. Proper configuration and troubleshooting are necessary to address these issues effectively.
Seeking Confirmation On PCIE Bifurcation Support
Seeking confirmation on PCIe bifurcation support involves verifying whether a motherboard or system can effectively split PCIe lanes for multiple devices, ensuring compatibility and optimal performance.
PCIe bifurcation motherboard list gigabyte
Here is a list of Gigabyte motherboards that support PCIe bifurcation:
1. Gigabyte X570 AORUS MASTER
2. Gigabyte Z490 AORUS XTREME WATERFORCE
3. Gigabyte B550 AORUS MASTER
4. Gigabyte Z590 AORUS XTREME WIFI
PCIe bifurcation motherboard list asrock
Here is a list of ASRock motherboards that support PCIe bifurcation:
1. ASRock X570 Taichi
2. ASRock X570 Phantom Gaming X
3. ASRock X570 Extreme4
4. ASRock B550 Taichi
PCIe bifurcation motherboard list msi
Here is a list of MSI motherboards that support PCIe bifurcation:
1. MSI MEG X570 GODLIKE
2. MSI MPG X570 GAMING PRO CARBON WIFI
3. MSI MEG Z490 GODLIKE
4. MSI MPG Z490 GAMING EDGE WIFI
PCIe bifurcation card
A PCIe bifurcation card is a hardware device that allows users to split a single PCIe slot into multiple lanes, enabling the connection of multiple devices to a single slot.
Asus PCIe bifurcation
ASUS PCIe bifurcation refers to the capability of ASUS motherboards to split PCIe lanes, enabling the use of multiple devices simultaneously. This feature enhances system flexibility and connectivity for various applications.
PCIe bifurcation riser
A PCIe bifurcation riser is a hardware component used to split PCIe lanes, allowing for the connection of multiple expansion cards or devices to a single PCIe slot.
PCIe bifurcation chipset
A PCIe bifurcation chipset is a component integrated into motherboards or expansion cards that enables the splitting of PCIe lanes to support multiple devices or expansion cards simultaneously.
How do I enable PCIe bifurcation?
To enable PCIe bifurcation, access the BIOS settings of your motherboard and navigate to the PCIe configuration section. Look for an option related to PCIe lane splitting or bifurcation and enable it. Save changes and restart your system for the settings to take effect.
Do all motherboards have PCIe slots?
No, not all motherboards have PCIe slots. However, PCIe slots are commonly found on most modern motherboards, especially those designed for desktop computers or servers.
Can you put a PCIe x4 in an x16 slot?
Yes, you can typically install a PCIe x4 card into an x16 slot. The x16 slot provides more lanes than the card needs, so it’s compatible and will work at its intended speed.
Read: What Does Apple Call A Motherboard – Ultimate Guide – 2024!
Common Questions
1. How does PCIe bifurcation benefit users?
PCIe bifurcation benefits users by enabling flexible device connections and improving system performance with diverse expansion options.
2. PCIe Bifurcation for all NVMe Build?
PCIe bifurcation enhances NVMe builds by allowing multiple NVMe SSDs to be connected to a single PCIe slot, maximizing storage performance and capacity.
3. Any LGA1700 motherboards with x4x4x4x4 bifurcation?
No, currently, there are no LGA1700 motherboards with x4x4x4x4 bifurcation support available.
4. Guide about how to check PCI-E Bifurcation support of any mainboard?
To check PCIe bifurcation support on any motherboard, consult the manufacturer’s specifications or BIOS settings for details on supported configurations.
5. [Motherboard] Compatibility of PCIE bifurcation between Hyper M.2 series Cards and Add-On Graphic Cards?
Compatibility depends on the motherboard’s support and available PCIe lanes for Hyper M.2 and graphic cards.
6. What is the difference between HYPER M.2X16 CARD V2, HYPER M.2X16 GEN 4 CARD and HYPER M.2 x16 GEN5 CARD ?
- HYPER M.2X16 CARD V2: This card supports PCIe Gen 3, allowing up to 32Gbps bandwidth per M.2 NVMe SSD slot. It’s suitable for systems requiring high-speed storage but not the latest PCIe Gen 4 or Gen 5 support.
- HYPER M.2X16 GEN 4 CARD: This card supports PCIe Gen 4, offering increased bandwidth of up to 64Gbps per M.2 NVMe SSD slot. It’s designed for systems that demand ultra-fast storage performance and are compatible with PCIe Gen 4 technology.
- HYPER M.2 x16 GEN5 CARD: This card is the latest iteration, supporting PCIe Gen 5 technology. It provides even higher bandwidth, up to 128Gbps per M.2 NVMe SSD slot, making it ideal for cutting-edge systems requiring the utmost storage speed and performance.
7. How to confirm my PCI Express lane capacity of Intel processor?
To confirm your Intel processor’s PCI Express lane capacity, refer to the product specifications on the Intel website or check the motherboard manual for details on PCIe lane allocation.
8. How to use Intel®VROC function on X299 series motherboard?
To utilize the Intel® VROC function on X299 series motherboards, ensure your motherboard supports VROC, install the necessary drivers, and configure RAID settings in the BIOS or using the Intel VROC software.
Conclusion
In conclusion, PCIe bifurcation offers users enhanced flexibility and performance, allowing for versatile system configurations and seamless expansion options. Considerations such as chipset compatibility and manufacturer support are vital when selecting a motherboard for bifurcation support.
